Saw Systems Newsletter - Issue 23: 2022

Sharp News for Sharp People

In this Saw Systems newsletter

Welcome to the Saw Systems Newsletter. If you would like to share a story, request a story or just say, "hello," please Contact Us or call 800.966.1300

The Production of a Carbide Band Saw Blade

An article by Wikus

The WIKUS production process focuses on absolute precision for the basis for straight cuts, a clean cutting surface and a maximum blade-life. Highly qualified employees take great care in each work step to ensure that the high-quality raw materials are used to create products that are 100% Made in Germany in the reputed WIKUS quality. This allows the best possible sawing results for our customers.

Milling
The special WIKUS tooth geometry is transferred to the band by means of a milling tool that was specially designed for WIKUS. This creates a clearly defined tooth pitch (number of teeth per inch and tooth shape)

Hardening, Quenching and Tempering
The special heat treatment process includes a hardening process and several sequential tempering processes. This lends the carrier band its high level of flexibility and the necessary hardness.

Sand Blasting
• Deburring the base of the tooth to prevent rated break points after mechanical processing
• Removing layers of scale
• Surface compaction to improve the continuous operation properties

Straightening
If necessary, the straightness and evenness of the band saw blade is optimized.

Welding on the Carbide Bodies and Sanding the Tooth Geometry
• Carbide segments are welded onto the carrier band in a resistance welding process
• Then the coated bands are given application-specific tooth geometries that are generated by computer-controlled sanding machines (CNS) in several steps.

Setting
Usually, the carbide band saw blades achieve the necessary free cutting property thanks to the sanded trapezoid tooth form. However, some carbide band saw blade qualities require settings similar to bimetal bands
• The setting process allows the band to cut freely and prevent jamming in the cutting channel

Coating
• If necessary, apply various hard coatings to increase the service life and reduce cutting times and noise emissions
• Depending on the application, different coats are applied to teeth and the backing of the band

Welding and Folding
Order-specific manufacturing and welding of the band saw blades including a thorough final inspection
• Stamping the band saw blades
• Attaching the tooth protection element
• Folding in a round or pretzel form
• Global shipping

Continuous Quality Inspections
• Round-the-clock, continuous monitoring of production by the internal materials testing lab
• Metallographic and geometric examination of the material at the end of the production processes
• Inspection of the supplied input materials from our certified suppliers

Heartwarming and Interesting Winter Facts

1. Snowflakes come in all different sizes: While the average snowflake is smaller than the size of a penny, they actually can grow much larger.

2. Reindeers can see in the dark: Reindeers that live above the Arctic Circle live in total darkness for weeks at a time.

3. The first winter Olympics took place in 1924: Since the modern Olympics were based on the ancient Olympics, winter sports were not always included.

4. The Earth is closest to the sun in the winter: The Earth reaches the point in its orbit when it is closest to the sun in January.

5. Squirrels save more than just seeds for the winter: While many animals store food for the winter, red squirrels seem to be the most creative according to Best Life.

6. There are flowers that bloom in the winter: While many plants are dormant in the winter, there are some flowering ones that bloom in the cold months.

7. Snow can be different colors: Most people believe that snow is white, or gray after it gets dirty, but snow can be a variety of colors.

8. The lowest temperature recorded on Earth: -128.6 Degrees Fahrenheit or -53.6 Celsius was the temperature recorded on July 21, 1983, at the Russian operated Vostok station in Antarctica.

9. The tallest snowperson stood over 122 Feet Tall: The residents of Bethel, Maine built the largest recorded snowwoman that measured over 122 feet.

T. Buck's BBQ Smoked Beef Jerky

T Buck

Main Ingredient:

6 lbs flank steak

Sliced beef

Slice beef to 1/4” strips. Have butcher do if need be.

The Marinade! Mmmmmm marinating!

Marinade:
1.5 C soy sauce
1/2 C Worcestershire sauce
1/2 C Ketchup
1/2 C Onion Powder
1/2 C Garlic Powder
1/2 C BBQ Rub (Your Favorite)
1/2 C Black Pepper
1/2 C Salt
4 0Z Vinegar BBQ sauce
4 OZ Molasses BBQ sauce


Instructions:
  • Combine all ingredients for marinade and mix well.
  • Add beef into marinade and coat all the beef.
  • Refrigerate for 24 hrs.
  • Pre heat smoker to low and when ready place beef strips on a non-stick cooking mat.
  • Dehydrate for 6-7 hours until jerky breaks when bent.
  • Store in fridge in an airtight container and enjoy!

Finished Meat!



Shur-Brite Nonwoven Abrasives
An article by: Superior Abrasives



Shur-Brite Nonwoven Abrasives


Nonwoven Features:
SHUR-BRITE™ offers the full range of nonwoven products for solving pre- or post-process applications. From shaping and deburring to cleaning and polishing, the versatile structure of SHUR-BRITE™ Nonwoven Abrasives provides flexibility, conformability, strength and consistency. Complimentary to SHUR-KUT™ Coated Abrasives, SHUR-BRITE™ Nonwoven Abrasives are better able to navigate workpieces without marring or gouging and can enable any final finish requirements.

Nonwoven Characteristics:

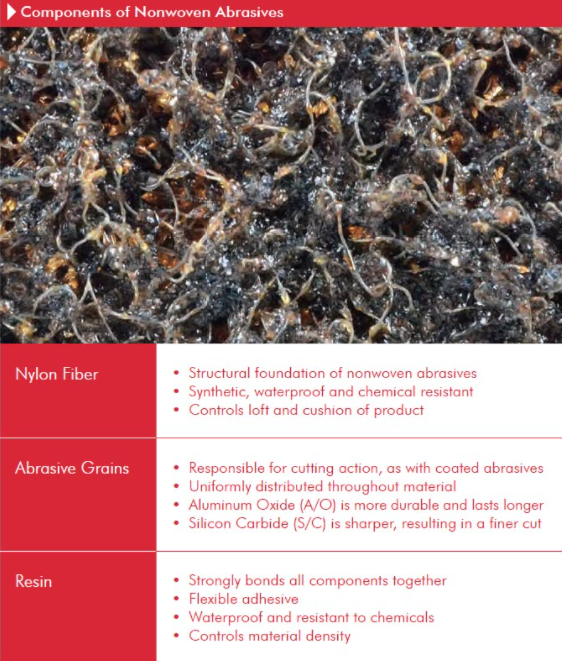

All SHUR-BRITE™ Nonwoven Abrasives consistently feature three components – nylon fibers, abrasive grains and resin. Each component is equally important and cannot perform a proper task without the others. The key to SHUR-BRITE™ Nonwoven Abrasives are the nylon fibers, which give products their dimensional, open structure, and control the conformability. The synthetic fiber structure, or fleece, is impregnated with abrasive grains and resins. The grains attach to the fiber, and the resin bonds these components together, leaving open areas throughout the nonwoven structure. Synthetic nylon fibers are the cushioning foundation which carry the grain media providing the cutting action.

Applications:
• Directional finishing of stainless steel
• Mold and die restoration polishing
• Blending coated abrasive scratch patterns
• Surface preparation before painting or coating
• Architectural & aesthetic finishing
• Mirror finish polishing
• Blending parting lines on cast parts
• Edge breaking or corner radiusing
• Stock removal and weld blending
• Corrosion, rust & oxidation removal
• Cleaning and micro deburring threads
• Spatter removal and cleanup
• Removing flash and runners from cast parts
• Gasket and adhesives removal
• Paint, scale, or surface coating removal
• Off-hand finishing and cleaning
• Cleaning and removing weld discoloration
• Blending and removing tool or handling blemishes

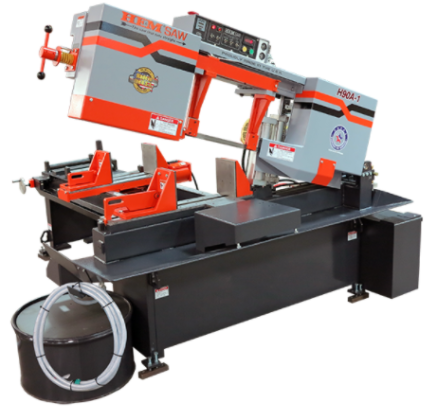

HE&M SAW Featured Machine! HE&M SAW H90A-1 SAW

Visit us at PMTS

See all features of the HE&M Saw H90A-1 in this video (above)!

STANDARD FEATURES INCLUDE:
• 2 Hold Down Fixtures
• 18″ Discharge Support
• Adjustable Clamping Force
• Adjustable Cutting Force
• Adjustable Feed Rate
• Adjustable Main & Feed Vise
• Blade Brush
• Broken Blade Indicator
• Carbide Blade Guides
• Console on Top of Saw – Bi-Function Control
• Flood Coolant System w/ Wash-Down Hose
• Manual Blade Tension
• Manual Guide Arm Adjustment
• Out of Stock Indicator
• Push Button Blade Speed w/ LED Readout
• Safety Guards
• Vertical Alignment Bar on Feed
• 220V/440V/3PH Electrical Motor Requirement
• 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)

Winter Recipe: Hot Chocolate Bombs

By: Taste of Home


Apple Crisp By Diane Kester

Ingredients

  •      • 22 ounces semi-sweet chocolate
  •      • ½ cup baking cocoa
  •      • ½ cup non-fat dry milk powder
  •      • ¼ cup confectioners’ sugar
  •      • 6 tablespoons vanilla marshmallow bits
  •      • Optional: sprinkles, colored sugar, candy melts

Directions

  • 1)   Place chocolate in microwave-safe bowl. Microwave uncovered on high for one minute and then stir every 30 seconds until chocolate is melted and smooth.
  • 1)   Add 1 tablespoon melted chocolate into silicone sphere-shaped mold. Brush melted chocolate evenly inside molds. Refrigerate molds until chocolate is set. Brush a thin second layer of chocolate in molds after it is set. Place remaining chocolate into a piping bag fitted with a small round decorating tip; set aside.
  • 1)   Remove chocolate molds from shaping tray. Ina medium bowl, whisk together baking cocoa, milk powder and confectioners’ sugar. Place 3 tablespoons cocoa mixture into half the chocolate spheres.
  • 1)   Pipe a small amount of melted chocolate on edges of remaining spheres; carefully adhere to halves and press lightly to seal. If desired, decorate with optional ingredients and refrigerate to set.
  • 1)   To prepare hot chocolate bombs: Place hot chocolate bomb in a mug, add 1 cup of warm milk and stir to dissolve.

One Sharp Photo

Photo © Copyright 2021

"The harder you work for something, the greater you’ll feel when you achieve it"
Another shot by – © 2021 Abby Jensen

<— Click the tiny photo and then, to make it larger, click the arrow icon in the upper right corner of the window that pops up!

If you have a photo you’d like to share for your next newsletter, please forward it to us. If we use it, we’ll send you a little something. Click to Contact Us!




You Have Questions?
We have Answers!

Contact Your Saw Systems Representative Directly:

• Dave Berkey: Dayton, Cincinnati, 937-609-0504

• Henry Langford: Cleveland
216-870-4195

• Matt Bucknell: Columbus & PA
440-829-3382

• Tim Schuerman: N.W. Ohio,
Michigan 419-979-9975

• Lou Kruk, New Jersey,
330-414-6033

• Jim Holland, New Machinery Sales, 440-223-0981

• Michael Brillhart, Sharpening
Applications, 330-806-5154

For Service:

• Jeremy Keba, Technical Service Mgr, 330-553-0056

Our New Site: Bades4Saws.com


See this QR Code? Holding your phone camera over it and clicking the link that comes up gives you direct access to Saw System’s new website: Blades4Saws.com! Or, click this link!

Blades for Saws QR Code

A Little Riddle




Answer this riddle correctly and win a Prize!


"What falls in winter but never gets hurt?"

Have an answer? Click Here to Email

The first correct answer will receive a prize from Saw Systems!
